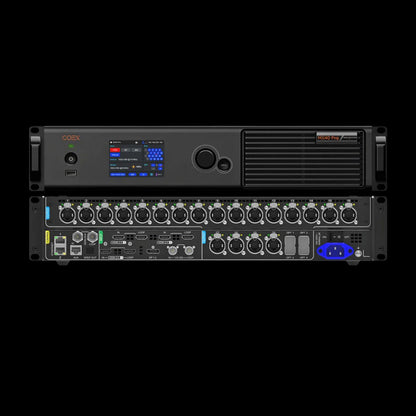

Novastar COEX Series MX40

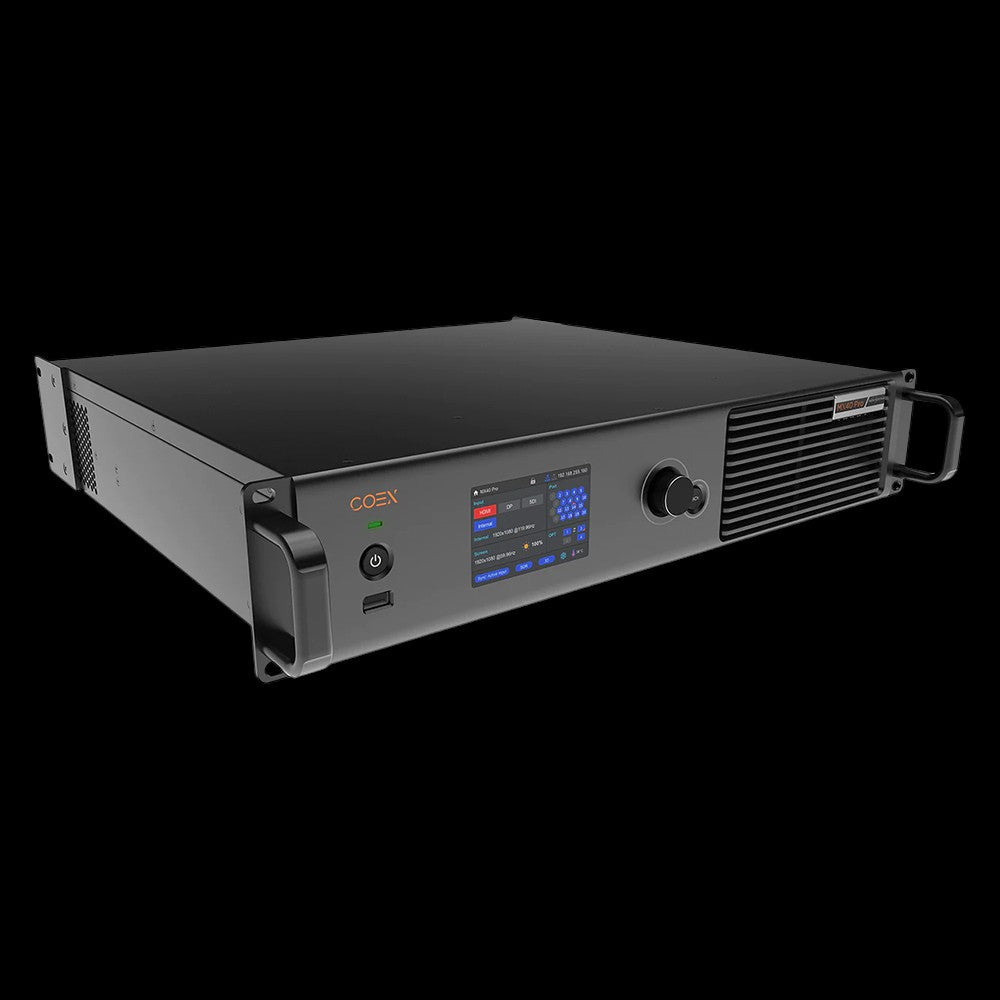

The MX40 Pro is a flagship all-in-one LED display controller with 20 Ethernet ports in the brand-new control system
COEX series of Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). This controller integrates video
processing and video control into one box and offers rich video input connectors (HDMI 2.0, DP 1.2 and 12G-SDI),
20x Ethernet output ports and 4x 10G optical ports. It can also work with the brand-new software VMP (Vision
Management Platform) to provide a better operation and control experience.

Key Features:

• HDR10 4:4:4 / HLG Support
• Ultra Low-Latency (< 1 ms)
• LED Image Booster 2.0
• Dynamic Booster
• Pixel Level Calibration
• Chroma & Gamma Calibration
• 14-Way Color Correction & Color Replacement
• Built-In Scaling
• Gen-Lock

xR Features:

• High Frame Rate Support – Up to 240Hz
• Frame Rate Multiplication
• Frame Multiplexing
• 3D LUT Support
• Phase Offset

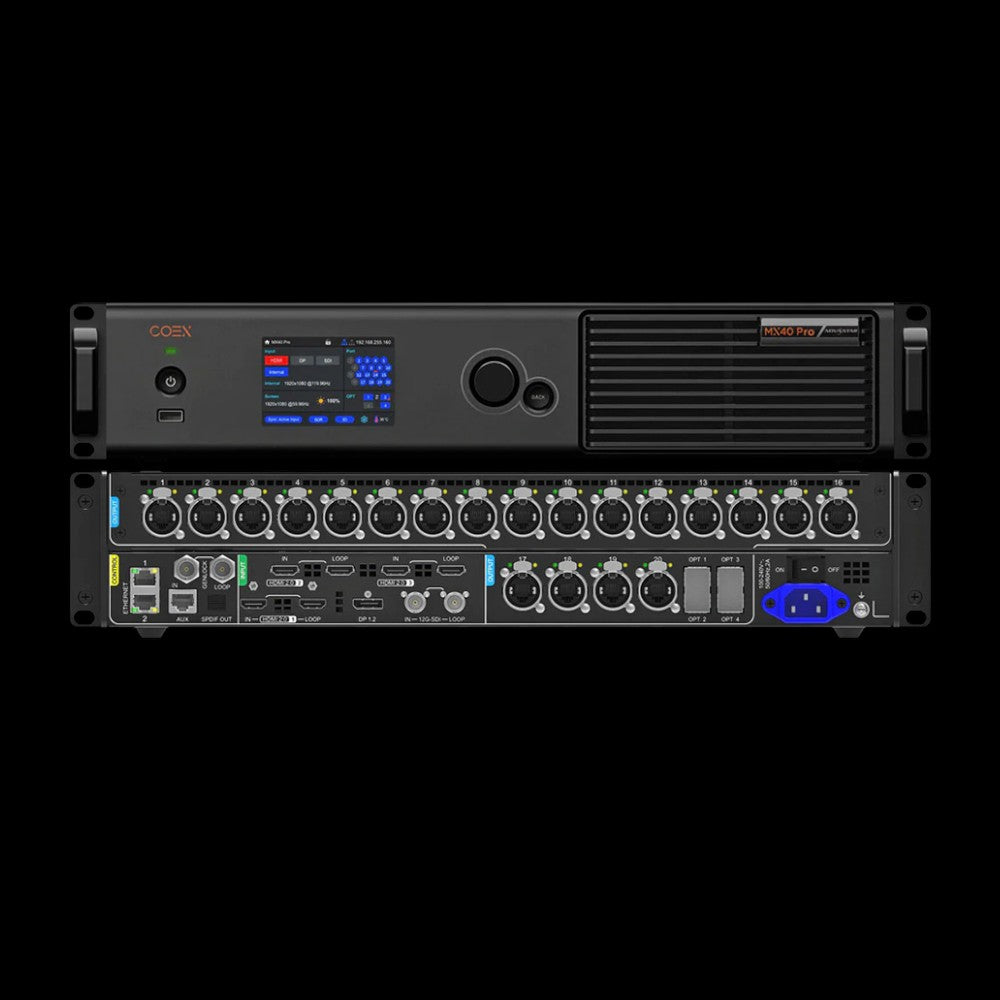

Connectors:

• 20x Ethernet Outputs
• 4x 10G Opt Outputs
• 3x HDMI-2.0 In + Loop
• 1x DP 1.2
• 1x 12G SDI In + Loop
• 1x Gen-Lock In + Loop
• 2x Ethernet Control Ports

NOTE: The MX40 Pro is only compatible with LED panels equipped with NovaStar Armor Series Receiving cards (A4S / A5S-Plus / A7S / A8S / A10S Pro). The full feature set is enabled on LED panels equipped with NovaStar A10S Pro. For feature compatibility, please contact us for verification.
